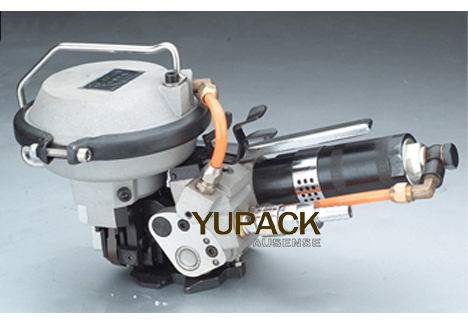

kz-19 Pneumatic combination steel strapping tool

Description

KZ19 pneumatic combination steel strapping tool used mainly for 19mm wide strap rolling, pneumatic single teeth pull with high efficiency. The tool is small, easy to handle, is one of the many steel-producing enterprises required equipment. For use of the machine can match balanced or single use. Simple operation, application areas.

·  Using compressed air as a power source, energy saving and environmental protection

· Pneumatic single tooth bite buckle, high working efficiency
· Max tension ≥ 300kg
· Bite buckle good effect, high tensile strength

Model	KZ19
Strapping materials	Steel strap
Air pressure	0.4-0.6Mpa
Use steel specification	(16-19)*(0.38-0.8)mm
Tape speed	5.5m/min
Tension	≥4.9KN/0.6Mpa
Tensile strength of lock parts	≥6.3N
Tool weight	5kg
